型號

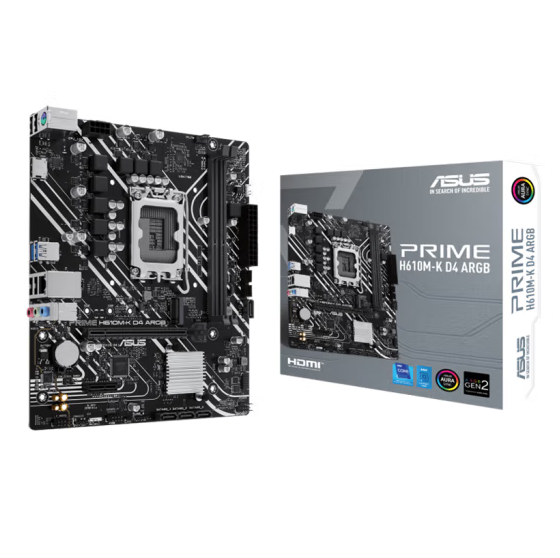

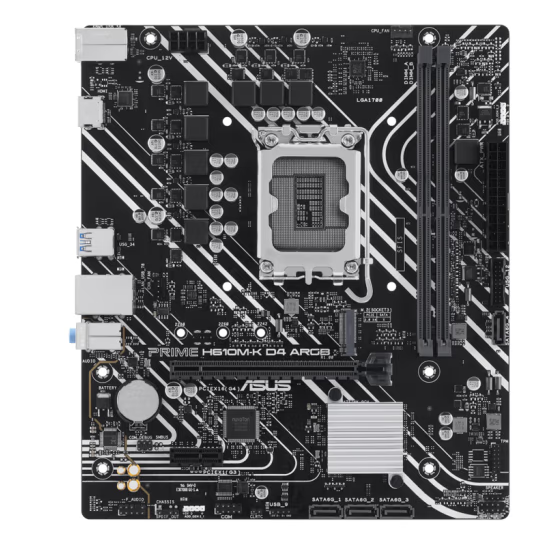

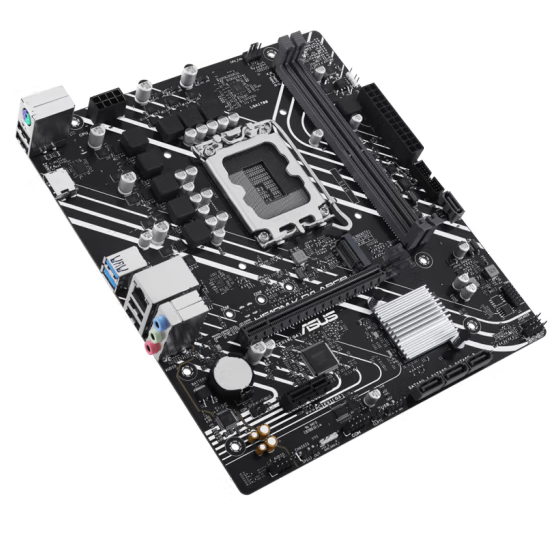

PRIME H610M-K D4 ARGB
新聞與更新
全新 BIOS 增強了第13代/第14代英特爾酷睿臺式機處理器的穩定性。
請參閱服務支持網站以獲取最新的 BIOS 版本下載和更新。
中央處理器
Intel? Socket LGA1700 for Intel? Core? 14th & 13th Gen Processors, Intel? Core? 12th Gen, Pentium? Gold and Celeron? Processors*
Supports Intel? Turbo Boost Technology 2.0 and Intel? Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel? Turbo Boost Max Technology 3.0 support depends on the CPU types.
芯片組
Intel? H610 Chipset
內存
2 x DIMM slots, max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel? Extreme Memory Profile (XMP) memory module
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
顯卡
1 x HDMI? port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.
擴展槽
Intel? Core? Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot (supports x16 mode)
Intel? H610 Chipset
1 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
存儲設備接口
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel? H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
網絡功能
1 x Realtek 1Gb Ethernet
USB 接口
Rear USB (Total 6 ports)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 3 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 1 additional USB 2.0 port
音效
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

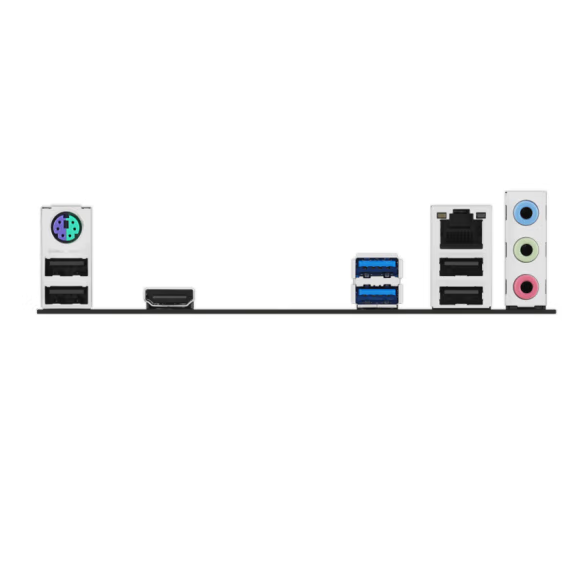

后側面板 I/O 設備接口
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI? port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard/mouse combo port
內置 I/O 設備接口
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage Related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 1 additional USB 2.0 port
Miscellaneous
2 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
特有功能
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core
- Stainless-steel back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
Aura Sync
- Addressable Gen 2 headers
軟件功能
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert
- Two-Way AI Noise Cancelation
AI Suite 3
- EPU
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 功能
128 Mb Flash ROM, UEFI AMI BIOS
管理功能
WOL by PME, PXE

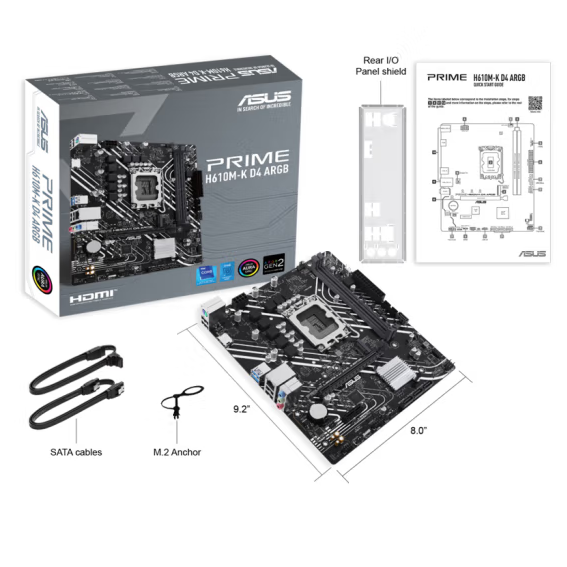

包裝內容
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O shield
1 x M.2 anchor
Documentation
1 x Quick start guide
支持操作系統
Windows? 11, Windows? 10 64-bit
主板尺寸
micro-ATX Form Factor
9.2 inch x 8.0 inch (23.4 cm x 20.3 cm)
